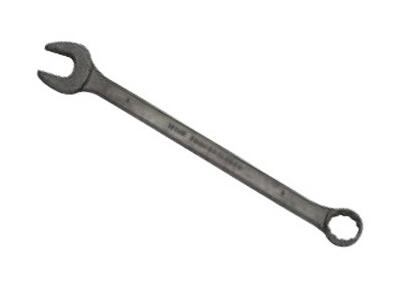

产品特点：
• 无反光黑氧化处理，用于要求不能有镀层的产品。
• 12角套筒端设计，更易接触并进入紧固件，且速度更快。适用于装配4角、6角和12角的紧固件。
• 套筒端的埋头孔，更易于接触紧固件。
• 15°角弯头可使扳手柄作业时避开障碍物。
• 1-5/16”及以上的英制尺寸不采用防滑设计。
• 套筒末端采用TorquePlus技术。
• Proto TorquePlus系列扳手适用于难处理的紧固件，受损紧固件及软质材料的紧固件。
• TorquePlus设计是一个高密度驱动结构，套筒可快速轻易的套上紧固件的平面，而不是棱角的部分。
• TorquePlus 设计采用圆弧角设计，是驱动应力远离紧固件角的部位，并将应力分布到更大的接触面区域，从而******限度降低滑动的产生。
• TorquePlus内部结构设计减少紧固件头部被磨圆，延长紧固件的寿命，并且用户可以更方便的装拆已经磨损，磨圆或生锈的紧固件。
|
产品型号
|
六角头宽mm
|
B
|
C
|
D
|
C1
|
D1
|
L1
|
重量/磅
|
符合标准
|
|
J1207MBA
|
7
|
7.9
|
14.7
|
4.7
|
10.7
|
5.2
|
131.1
|
0.04 lbs.
|
ASME B107.100
|
|
J1208MBA
|
8
|
9.9
|
17.4
|
5.2
|
13.5
|
7.1
|
137.4
|
0.07 lbs.
|
ASME B107.100
|
|
J1209MBA
|
9
|
10.3
|
18.6
|
5.2
|
13.5
|
7.1
|
143.8
|
0.08 lbs.
|
ASME B107.100
|
|
J1210MBASD
|
10
|
12.3
|
22.2
|
5.9
|
16.3
|
7.9
|
150.1
|
0.13 lbs.
|
ASME B107.100
|
|
J1211MBASD
|
11
|
13.5
|
23.8
|
6.4
|
17.4
|
8.3
|
175.5
|
0.14 lbs.
|
ASME B107.100
|
|
J1212MBASD
|
12
|
14.3
|
28.1
|
6.4
|
18.6
|
8.3
|
195.8
|
0.17 lbs.
|
ASME B107.100
|
|
J1213MBASD
|
13
|
15.5
|
26.6
|
6.8
|
19.8
|
8.7
|
200.9
|
0.18 lbs.
|
ASME B107.100
|
|
J1214MBASD
|
14
|
17.4
|
30.1
|
7.5
|
21.8
|
9.1
|
223.8
|
0.22 lbs.
|
ASME B107.100
|
|
J1215MBASD
|
15
|
18.3
|
31
|
7.5
|
22.2
|
9.1
|
232.4
|
0.25 lbs.
|
ASME B107.100
|
|
J1216MBASD
|
16
|
19.1
|
33.7
|
8.3
|
24.2
|
10.3
|
242.4
|
0.26 lbs.
|
ASME B107.100
|
|
J1217MBASD
|
17
|
21
|
36.8
|
8.7
|
26.1
|
11.1
|
261.3
|
0.38 lbs.
|
ASME B107.100
|
|
J1218MBASD
|
18
|
21.8
|
38.4
|
8.3
|
26.9
|
11.5
|
271.3
|
0.41 lbs.
|
ASME B107.100
|
|
J1219MBASD
|
19
|
23
|
40
|
9.1
|
28.1
|
11.9
|
280.2
|
0.46 lbs.
|
ASME B107.100
|
|
J1220MBASD
|
20
|
25
|
42.9
|
9.9
|
30.1
|
12.7
|
290.2
|
0.55 lbs.
|
ASME B107.100
|
|
J1221MBASD
|
21
|
25
|
42.9
|
10.3
|
30.1
|
12.7
|
300.2
|
0.54 lbs.
|
ASME B107.100
|
|
J1222MBASD
|
22
|
26.5
|
45.5
|
10.3
|
32.5
|
13.9
|
318.1
|
0.62 lbs.
|
ASME B107.100
|
|
J1223MBASD
|
23
|
28.5
|
48.4
|
10.3
|
34.1
|
14.3
|
328.1
|
0.77 lbs.
|
ASME B107.100
|
|
J1224MBASD
|
24
|
28.5
|
49.6
|
10.3
|
34.1
|
14.3
|
338
|
0.77 lbs.
|
ASME B107.100
|
|
J1212BASD
|
3/8"
|
27/64"
|
13/16"
|
7/32"
|
39/64"
|
5/16"
|
6"
|
0.10 lbs.
|
ASME B107.100
|
|
J1214BASD
|
7/16"
|
17/32"
|
15/16"
|
1/4"
|
43/64"
|
21/64"
|
7"
|
0.22 lbs.
|
ASME B107.100
|
|
J1216BASD
|
1/2"
|
39/64"
|
1-5/64"
|
17/64"
|
49/64"
|
11/32"
|
8-7/8"
|
0.26 lbs.
|
ASME B107.100
|
|
J1218BASD
|
9/16"
|
11/16"
|
1-3/16"
|
19/64"
|
27/32"
|
23/64"
|
8-7/8"
|
0.21 lbs.
|
ASME B107.100
|
|
J1220BASD
|
5/8"
|
3/4"
|
1-21/64"
|
5/16"
|
15/16"
|
13/32"
|
9-1/2"
|
0.29 lbs.
|
ASME B107.100
|
|
J1222BASD
|
11/16"
|
13/16"
|
1-29/64"
|
11/32"
|
1-1/4"
|
7/16"
|
10-1/4"
|
0.35 lbs.
|
ASME B107.100
|
|
J1224BASD
|
3/4"
|
57/64"
|
1-37/64"
|
23/64"
|
1-3/32"
|
15/32"
|
11"
|
0.41 lbs.
|
ASME B107.100
|
|
J1226BASD
|
13/16"
|
31/32"
|
1-11/16"
|
3/8"
|
1-11/64"
|
1/2"
|
11-7/8"
|
0.54 lbs.
|
ASME B107.100
|
|
J1228BASD
|
7/8"
|
1-1/16"
|
1-13/16"
|
13/32"
|
1-1/4"
|
17/32"
|
12-1/2"
|
0.64 lbs.
|
ASME B107.100
|
|
J1230BASD
|
15/16"
|
1-1/8"
|
1-29/32"
|
1/8"
|
1-11/32"
|
9/16"
|
13-1/4"
|
0.74 lbs.
|
ASME B107.100
|
|
J1232BASD
|
1"
|
1-13/64"
|
2-1/64"
|
29/64"
|
1-13/32"
|
19/32"
|
14"
|
0.95 lbs.
|
ASME B107.100
|
|
J1234BASD
|
1-1/16"
|
1-9/32"
|
2-9/64"
|
15/32"
|
1-31/64"
|
5/8"
|
15-1/4"
|
1.13 lbs.
|
ASME B107.100
|
|
J1236BASD
|
1-1/8"
|
1-23/64"
|
2-17/64"
|
33/64"
|
1-21/32"
|
41/64"
|
15-7/8"
|
1.38 lbs.
|
ASME B107.100
|
|
J1240BASD
|
1-1/4"
|
1-1/2"
|
2-33/64"
|
17/32"
|
1-3/4"
|
45/64"
|
16-7/8"
|
1.89 lbs.
|
ASME B107.100
|
|
J1242B
|
1-5/16"
|
1-37/64"
|
2-41/64"
|
17/32"
|
2-1/8"
|
47/64"
|
17-5/8"
|
2.15 lbs.
|
ASME B107.100
|
|
J1244B
|
1-3/8"
|
1-21/32"
|
2-49/64"
|
35/64"
|
1-15/76"
|
25/32"
|
18-1/2"
|
2.34 lbs.
|
ASME B107.100
|
|
J1246B
|
1-7/16"
|
1-47/64"
|
2-57/64"
|
37/64"
|
23/64"
|
51/64"
|
19-3/8"
|
2.67 lbs.
|
ASME B107.100
|
|
J1248B
|
1-1/2"
|
1-3/4"
|
3"
|
5/8"
|
2-1/8"
|
53/64"
|
20-1/8"
|
2.15 lbs.
|
ASME B107.100
|
|
J1252B
|
1-5/8"
|
1-63/64"
|
3-25/64"
|
21/32"
|
2-13/32"
|
29/32"
|
23"
|
4.64 lbs.
|
ASME B107.100
|
|
J1254B
|
1-11/16"
|
1-63/64"
|
3-25/64"
|
21/32"
|
2-13/32"
|
29/32"
|
23"
|
4.74 lbs.
|
ASME B107.100
|
|
J1256B
|
1-3/4"
|
2-11/64"
|
3-41/64""
|
45/64"
|
2-39/64"
|
31/32"
|
25"
|
5.64 lbs.
|
ASME B107.100
|
|
J1258B
|
1-13/16"
|
2-11/64"
|
3-41/64"
|
45/64"
|
2-39/64"
|
31/32"
|
25"
|
5.59 lbs.
|
ASME B107.100
|
|
J1260B
|
1-7/8"
|
2-25/64"
|
4-1/64"
|
49/64"
|
2-57/64"
|
1-1/16"
|
28"
|
7.46 lbs.
|
ASME B107.100
|
|
J1264B
|
2"
|
2-25/64"
|
4-1/64"
|
49/64"
|
2-57/64"
|
1-1/16"
|
28"
|
7.35 lbs.
|
ASME B107.100
|
|
